Multi bag filter housing is designed with a proven swing eye-bolt or segment clamp closure mechanism.Positive O-ring sealing offers easy and safe operation.We can provide almost all kinds of multi-bag filters available, from double-bag type to 24-bag type, complete in specifications.Available in carbon steel or Type 304 or 316 stainless steel for high corrosion resistance.
If you buy our multi-bag filters, you can wait for a long time to change the used bags..
About bag filtration, inside the bag filtration system, the filter bag is supported by an inside metal basket. The incoming fluid flow out after filtered by the bag, and the impurities are intercepted in the filter bag. You can continue to use the filtration system after changing the filter bag.

Multi Bag Filter Housing

MULTI BAG FILTER HOUSING FEATURES:
--The multi bag filter housing is designed with a proven swing eye-bolt or segment clamp closure mechanism.
--Positive O-ring sealing offers easy and safe operation.
--We can provide almost all kinds of multi-bag filters available, from double-bag type to 24-bag type, complete in specifications.
--the flanges of the link outlet-inlet from 3"to18".
--the Max.flow of single unit are from 90 cubic m./h to 1,080 cubic m./h.
--Available in carbon steel or Type 304 or 316 stainless steel for high corrosion resistance.
--If you buy our multi-bag filters, you can wait for a long time to change the used bags.

Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine

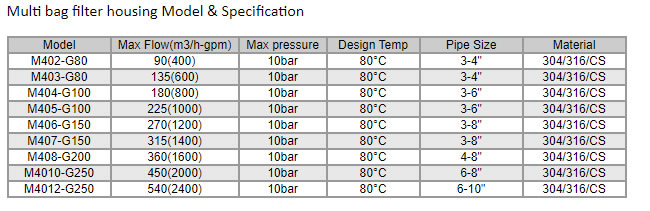

Multi bag filter housing model specification
Quick Lock Multi bag filter housing (Qic lock opening cover with Spring Assist Hinge)
The QLM Bag Vessel defines the sitate of the art for multi-bag vessels.The operator's safely and ease of bag change out were considered paramount in its design. A low profile design means the top of the bag is at about waist height for most operators--thus providing a more ergonomic position for lifting dirty bags out of the vessel. The QLM unlque quick opening spindle closure mechanism provides for a 20 second opening--without tools. The integral vent valve mechanism protects the operator by preventing the opening of the vessel without first venting the pressure. Finally, the spring assisted hinge makes lifting the lid easy and safe. All vessels are constructed of 304/316 stainless steel. The vessel is pressure rated to 150psi.
Quick Lock Multi Bag Filter Housing

Quick Lock Multi bag filter housing Feature

--We can provide almost all kinds of multi-bag filters available, from double-bag type to 12-bag type, complete in specifications.
--the flanges of the link outlet-inlet from 2"to10".
--the Max.flow of single unit are from 90 cubic m./h to 540 cubic m./h.
--Available in 304 or 316 stainless steel material
--If you buy our multi-bag filters, you can wait for a long time to change the used bags.

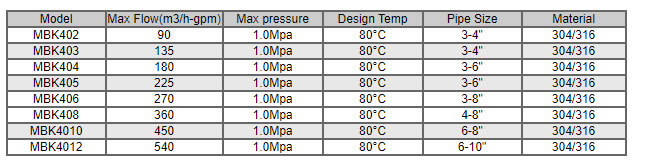

Quick Lock Multi bag filter housing Model Table

Quick Lock Multi bag filter housing Model Table
JS Environment is the manufacturer of Multi bag filter housing and Bag Filter Vessels in China, such as B-Style Multi Bag Filter Housing, Quick Lock Multi Bag Filter Housing, Carbon Steel Multi Bag Filter Housing, these liquid filration products are widely used in various industrial areas throughout the world.

B-Style Multi Bag Filter Housing

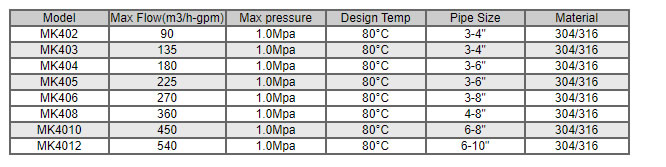

B-Style Multi Bag Filter Housing Model Table
B-Style Multi Bag Filter Housing Model Table
