Plastic bag filter housing is a filtration system which is produce with PP (polypropylene)£¬taking advantages of excellent PP material, can be used for filtering a lot of chemical sour soda liquids.

Plastic Bag Filter Housing

The new SIZE 5 plastic bag filter housing, solid structure, safe, reliable, easy to install, without any welding, economical and durable. Special material PP can be used for most chemical liquid filtration, corrosion resistance to most chemicals.
Specially designed screw rotating cover without any tools to switch freely; flange-style access interface, to avoid leakage and cracking of the traditional pipe welding and screw connection; filter bag and filter bucket in close contact with any filter residue can not penetrate equipment.

The new No. 5 plastic bag filter housing product advantages:
* Easy to change the filter bag filter with different filtration accuracy.
* Screw cap design allows it to open and close the cartridge without any tools, operation and maintenance fast.
* Fluoroplastic rubber or silicone seals, suitable for a wide range of pH and temperature liquid, so as to meet the production needs.
* Polished tube wall design for easy cleaning or flushing in place.
* Four-hole mounting square base design, to improve the ease of installation, strengthening the stability of the filter bucket.
* Filter ring and the filter ring close to the wall design to effectively prevent liquid leakage.
* Net blue one form, mesh blue appearance design uniform distribution, orderly prominent solid square column, increased network blue pressure resistance.
* Flange bolt hole from the multi-function, with GB, American standard, Japanese standard, German standard flange.
Filtration Specification:
Inlet & Outlet: DN50 Flange
Filtration area: 0.3 m2
Flow rate: 30 m3/h
Design pressure: 6 bar
Housing material: PP
Optional micron rate: 0.5um, 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um

Plastic Bag Filter Housing Filtration system application:
Hydrochloric acid, Sulfuric acid, Aqua regia and other strong Acid and Alkali solution filtration and most of the chemical liquid filtration.

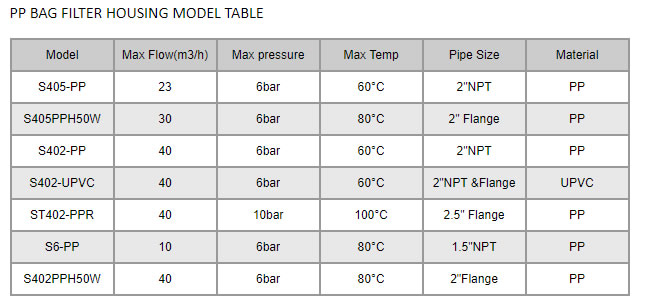

PLASTIC BAG FILTER HOUSING MODEL TABLE
PP Bag Filter Housing
Mini S6 PP Bag Filter Housing
Plastic bag filter housing (S6) Product Structure:
S6 bag filter components: the main body, net blue, sealing cap, screw cap, rings nuts.
S6 Plastic Bag Filter Housing Product Features:
1, the product is a new plastic filter, entrance and exit into the national standard threaded one-piece, economical and durable.
2, the main appearance of a uniform distribution of 6 ribs, making it strong and robust structure, safe and reliable, without any welding.
3, special transparent material PPR can be used for most of the chemical liquid filtration, corrosion resistance to most chemicals.
4, specially designed screw rotation cover without any tools to switch freely, the lid sealed tight, easy operation and maintenance.
5, precise and consistent sealing cover easy to install, to avoid leakage of liquid before the filter; sealing cover in the top of the filter bag to prevent the filter bag floating.
6, high filtration precision (0.5um-1000um), the filter bag ring and the filter wall closely in contact effectively prevent liquid leakage, any filter residue can not penetrate the device.
7, the filter bag and the inner wall of the filter close contact, easy to install and remove the filter bag.
8, PP mesh filter bag easy to clean, not a replacement product supplies, no cost of supplies costs.
9, the seal ring is EPDM material, suitable hardness, suitable for a wide range of pH and temperature liquid, so as to meet the production needs, is not a consumable, no consumables costs.
10, square base design, to enhance the smoothness of the filter; base with 4 M8 internal thread, to improve the ease of installation, solid structure, safe and correct.
11, net blue one form, mesh blue appearance design distribution, orderly prominent solid square column, increased network blue pressure resistance.
12, polished outer wall design to facilitate manual cleaning or flushing in the appropriate location.
PP Bag Filter Housing

Plastic bag filter housing is a filtration system which is produce with 100% PP (polypropylene )£¬PP bag filter housing is made of excellent PP material, can be used for filtering a lot of chemical sour soda liquids.

MODEL: S402PPH50W

Material: PP plastic

Flow: 40T/H

Inlet&Outlet: DN50

PP Bag Filter Housing Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine
