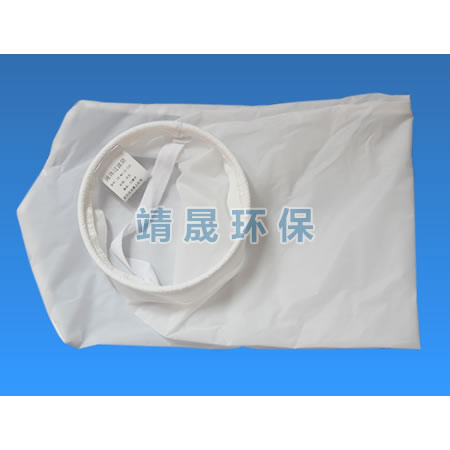

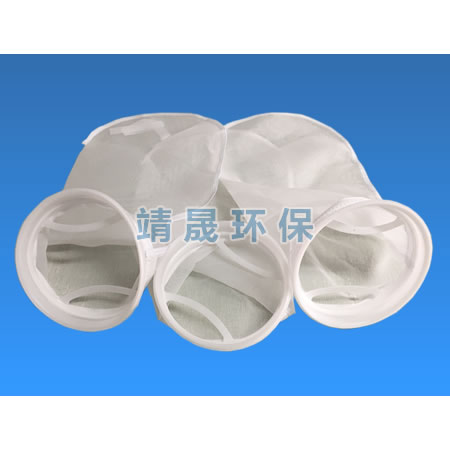

Nylon Mesh Filter Bag is reusable in many applications.

Monofilament Mesh is an extremely strong material with precise weaving to ensure consistent pore sizes. It is reusable in many applications. Nylon is the most widely used material. Nylon Filter Bags are available in micron ratings from 25 to 1000 microns.

Bag Filter Catalog

If your Nylon Filter Bags is different from our filter bag, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag.

Filter bags Specifications
Filter Media
Felt, nylon
Felt, polyester
Felt, polypropylene
Maximum Operating Temperature
Polypropylene: 200-220° F (93-104° C)
Polyester: 275-325° F (135-162° C)
Nylon: 275-300° F (135-149° C)
Micron Rating
Polypropylene: 0.5, 1, 3, 5, 10, 25, 50, 100, 200
Polyester: 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 200
Nylon: 25, 50, 100, 150, 200, 300, 400, 500, 600...1000

FILTER BAG SIZE
1: 7” x 16” (17.78 cm x 40.64 cm)
2: 7” x 32” (17.78 cm x 81.28 cm)
3: 4” x 8.25” (10.16 cm x 20.96 cm)
4: 4” x 14” (10.16 cm x 35.56 cm)
5: 6 ” x 22” (15.24 cm x 55.88 cm)
