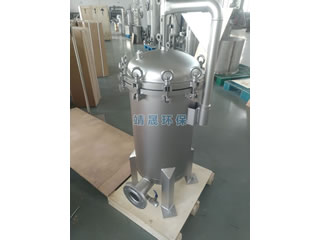

Multi bag filter housing is designed with
a proven swing eye-bolt or segment clamp
closure mechanism.If you buy our multi bag
filter housing, you can wait for a long time
to change the used filter bags.
Multi bag filter housing is designed with a proven swing eye-bolt or segment clamp closure mechanism.Positive O-ring sealing offers easy and safe operation.We can provide almost all kinds of multi-bag filters available, from double-bag type to 24-bag type, complete in specifications.Available in carbon steel or Type 304 or 316 stainless steel for high corrosion resistance.
If you buy our multi-bag filters, you can wait for a long time to change the used bags..
About bag filtration, inside the bag filtration system, the filter bag is supported by an inside metal basket. The incoming fluid flow out after filtered by the bag, and the impurities are intercepted in the filter bag. You can continue to use the filtration system after changing the filter bag.
MULTI BAG FILTER HOUSING FEATURES:
--The multi bag filter housing is designed with a proven swing eye-bolt or segment clamp closure mechanism.
--Positive O-ring sealing offers easy and safe operation.
--We can provide almost all kinds of multi-bag filters available, from double-bag type to 24-bag type, complete in specifications.
--the flanges of the link outlet-inlet from 3"to18".
--the Max.flow of single unit are from 90 cubic m./h to 1,080 cubic m./h.
--Available in carbon steel or Type 304 or 316 stainless steel for high corrosion resistance.
--If you buy our multi-bag filters, you can wait for a long time to change the used bags.
Filtration Specification:
Inlet & Outlet: 2-4” Flange
Filtration area: 1.0 m2
Flow rate: 90 m3/h
Design pressure: 10 bar
Suitable working pressure : 4-6 bar
Housing material: 304SS
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.
Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine
Multi bag filter housing Model & Specification
Model | Max Flow(m3/h-gpm) | Max pressure | Design Temp | Pipe Size | Material |
M402-G80 | 90(400) | 10bar | 80°C | 3-4" | 304/316/CS |
M403-G80 | 135(600) | 10bar | 80°C | 3-4" | 304/316/CS |
M404-G100 | 180(800) | 10bar | 80°C | 3-6" | 304/316/CS |
M405-G100 | 225(1000) | 10bar | 80°C | 3-6" | 304/316/CS |
M406-G150 | 270(1200) | 10bar | 80°C | 3-8" | 304/316/CS |
M407-G150 | 315(1400) | 10bar | 80°C | 3-8" | 304/316/CS |
M408-G200 | 360(1600) | 10bar | 80°C | 4-8" | 304/316/CS |
M4010-G250 | 450(2000) | 10bar | 80°C | 6-8" | 304/316/CS |
M4012-G250 | 540(2400) | 10bar | 80°C | 6-10" | 304/316/CS |
