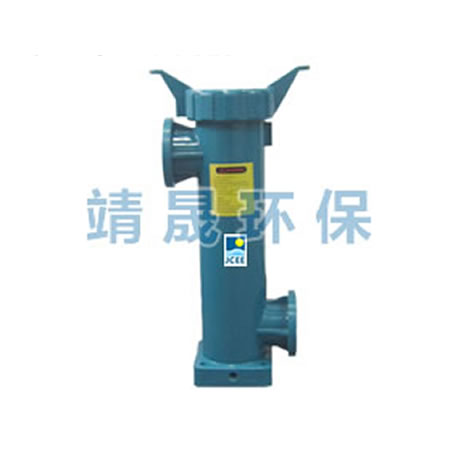

PP Bag Filter Housing, taking advantages of
excellent PP material, can be used for filtering
a lot of chemical sour soda liquids. It is really
an economical and practical fine product, as
it has no seam, no dead angle, accurate
specification with high-quality, high capacity
and efficiency.
S405PP Filter Housing's Working Features:
--The inner-side is very smooth, no ditch, no dead angle, easy to wash.
--P- handle on the cover helps to open the top cover and change materials.
--2" FLANGE Inlet and Outlet.
--The bag has a grip respectively, very convenient to change, safe and clean.
--Working pressure can reach 7kg/cm2 (design pressure 15kg/cm2), operate temperature can be up to 43 ℃/ 110F (material able to bear 83 ℃).
--Please operate in accordance with the condition of standardizing , make sure not to exceed pressure limit or temperature limit.
--For the filter bag: Size 5 (D6" * L20")
PP Bag Filter Housing
S405PP Bag Filter Housing Filtration specification:
Inlet & Outlet: 2” Flange
Filtration area: 0.23 m2
Flow rate: 23 m3/h
Design pressure: 6 bar
Suitable working pressure : 3-4 bar
Housing material: PP
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.
PP Bag Filter Housing Filtration system application:
---Automotive
---Paints, Coating, Inks, Dispersions
---Water and Water Treatment
---Solvents
---Lubricants, Metalworking Fluids
---Parts Cleaning Solutions
---Pulp and Paper
---Pharmaceutical
---Food Processing
---Chemical Processing
---Edible Oils
---Potable Water, Beer, Wine
S402PP Bag Filter Housing Filtration specification:
Inlet & Outlet: 2” Flange
Filtration area: 0.5 m2
Flow rate: 40 m3/h
Design pressure: 6 bar
Suitable working pressure : 3-4 bar
Housing material: PP
Optional micron rate: 1um, 5um, 10um, 25um, 50um, 100um, 150um, 200um...600um...1000um
If you need other model, please contact us.
PP BAG FILTER HOUSING MODEL TABLE
Model | Max Flow(m3/h) | Max pressure | Max Temp | Pipe Size | Material |
S405-PP | 23 | 6bar | 60°C | 2"Flange | PP |
S405-PPH | 30 | 8bar | 80°C | 2" Flange | PP |
S402-PP | 40 | 6bar | 60°C | 2"Flange | PP |
ST402-PPR | 40 | 8bar | 80°C | 2.5" Flange | PP |
S404-PP | 10 | 6bar | 60°C | 1.5" Flange | PP |
S6-PP | 10 | 6bar | 60°C | 1.5"NPT | PP |
