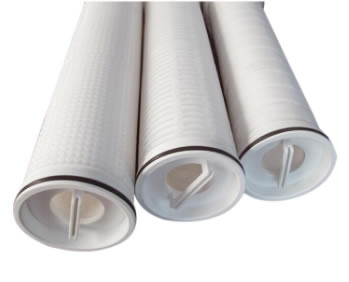

High Flow Filter Cartridge

High Flow Filter Cartridge is a large diameter, single open-ended pleated cartridge filter with PP core and polyester net cover. it has a diameter of 6"/150mm with a 8m filtration area which results in a high flow rate up to 60 m3/h.

Bag Filter Catalog

High Flow Filter Cartridge Application:

--Industrial: Municipal water, RO Pre-filtration, reclaimed water, coolant, nozzle protection, belier condensate, desalination.

--Chemical: Quench water, aqueous salt solutions, final products.

--Petrochemicals: Water flooding ,produced water, enhanced oil recovery, completion fluids, amine sweetening, final products.

--Electronics: RO Pre-filtration, process water, deionized water pre-filtration.

Food and Beverage: Process and blending water ,bottled water.

--Pharmaceutical: Process water.

--Power Plant: Supplementary water, condensation water, coolant

Filter Cartridge

High Flow Filter Cartridge Features and Benefits:

1. Graded density ultra fine polypropylene membrane filter, could provide absolute rating filtration.

2. Pleated depth media for high flow rate and maximum dirt holding capacity.

3. 100% polypropylene construction offers broad chemical compatibility.

4. High retention efficiency provide excellent protection of downstream filters.

5. No fiber migration into the process fluid.
